Mitsubishi Heat Pump and Air Handler Installation in San Mateo
This one is a project we really enjoyed: a Mitsubishi heat pump installation in San Mateo, where an old Carrier gas furnace in a tight utility space was swapped for a 3-ton Mitsubishi heat pump outside and a matching Mitsubishi air handler inside. One system now handles both heating and cooling through the home’s ducts.
From an old furnace to a modern air handler

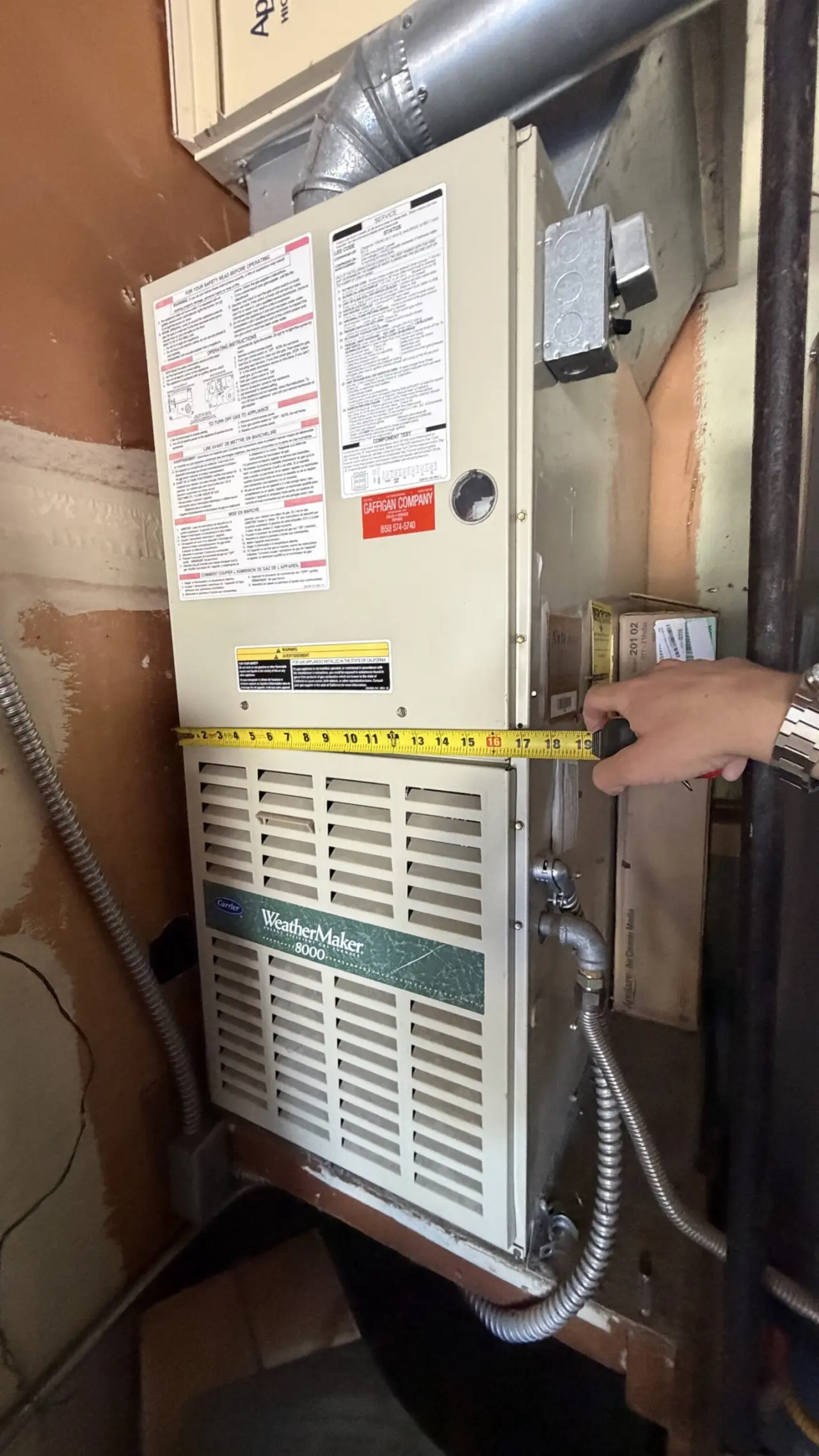

Here is where we started. At the estimate visit we found a Carrier WeatherMaker furnace squeezed between the wall and the water heater, and we measured it right there so we knew exactly what would fit in that spot. Space was tight, and planning ahead saved a lot of guesswork on install day.
Ready for reliable comfort?
Book your San Mateo County HVAC service today - fast, honest, guaranteed.

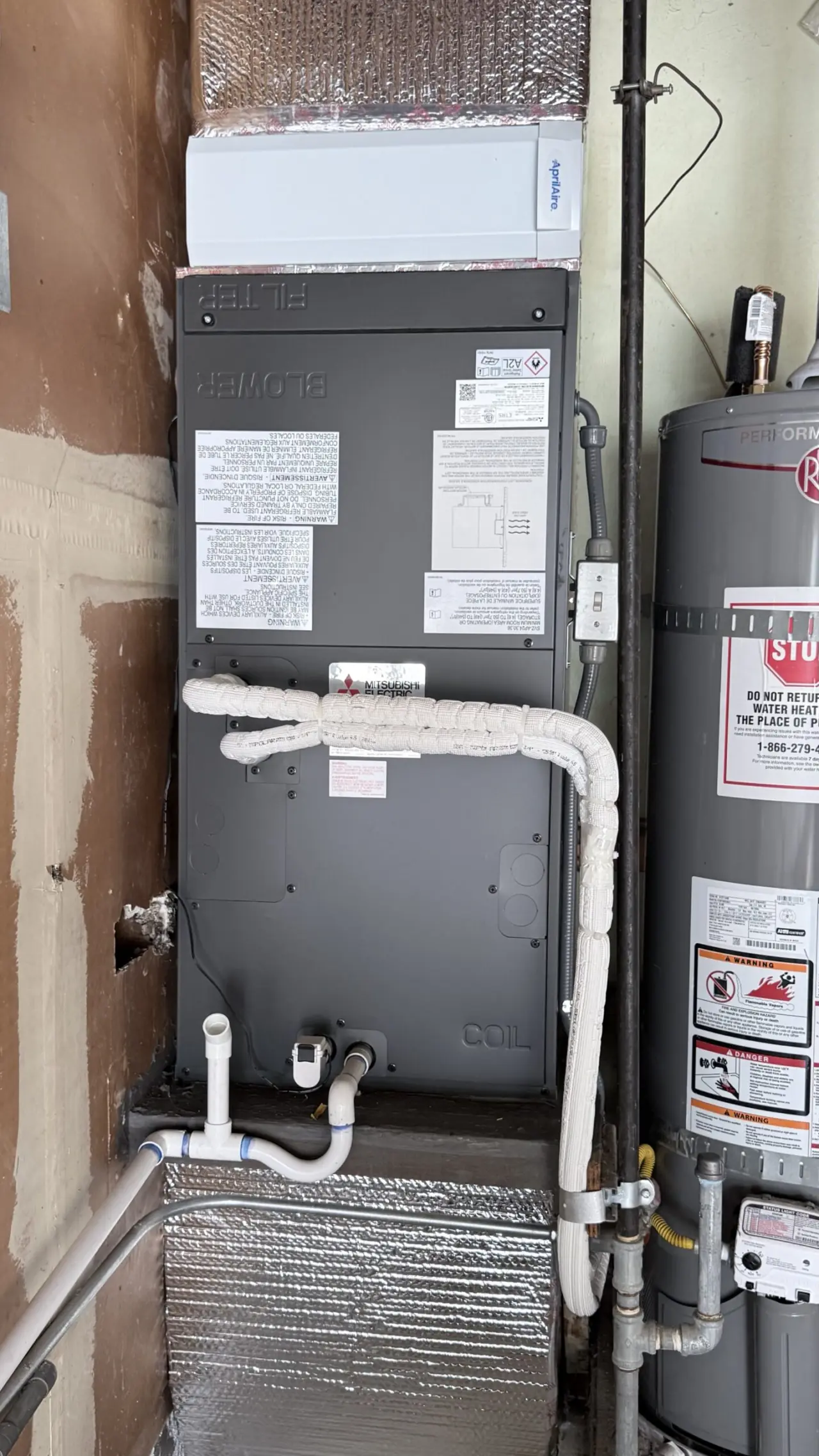

And here is the same corner now. The new Mitsubishi air handler sits on the platform where the furnace used to be. The refrigerant lines are wrapped in insulation and routed neatly down the side, and the condensate drain is piped out in white PVC so the water from cooling season has a clear path away from the unit. A filter cabinet sits right on top, so changing the filter stays easy.

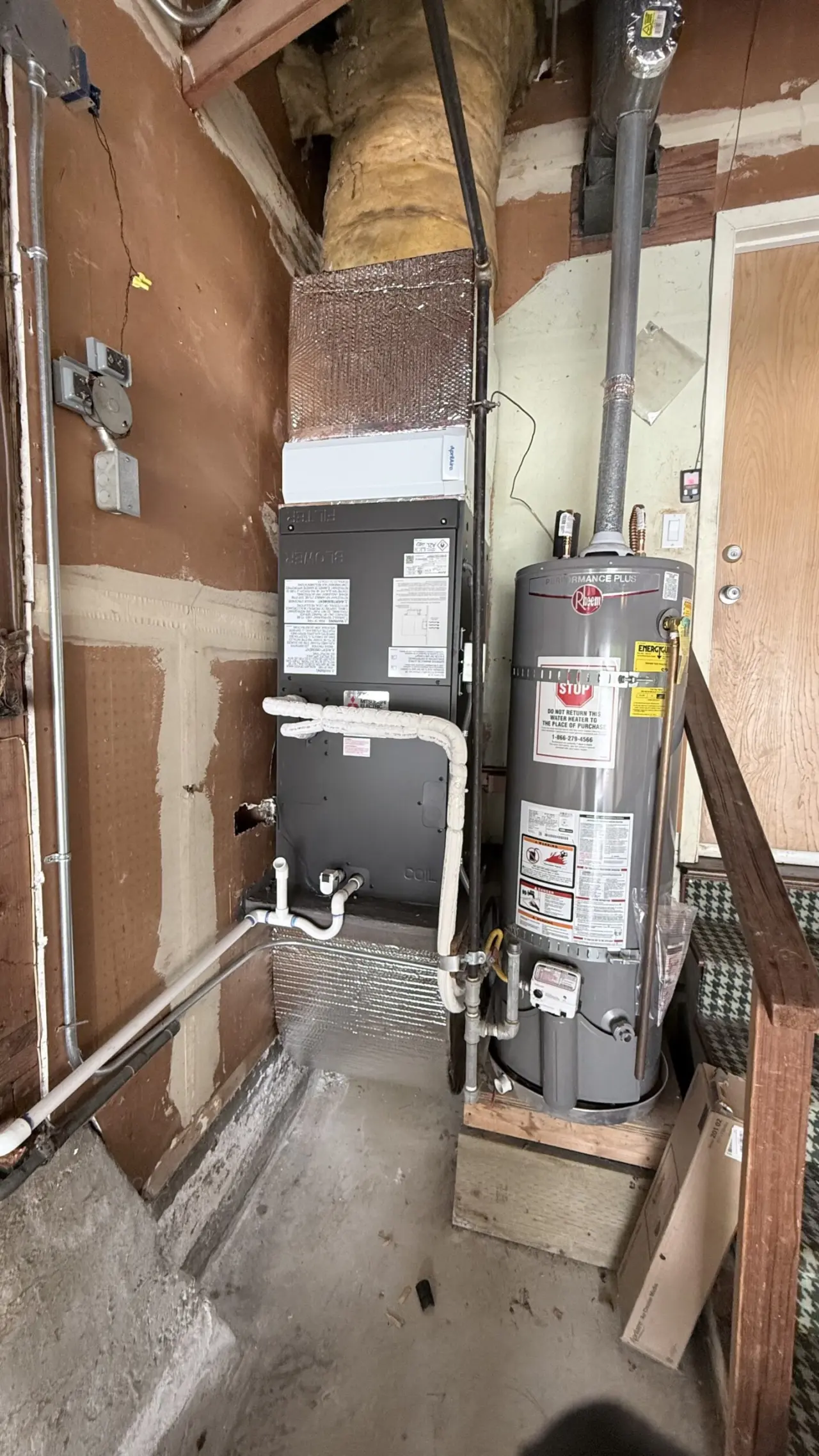

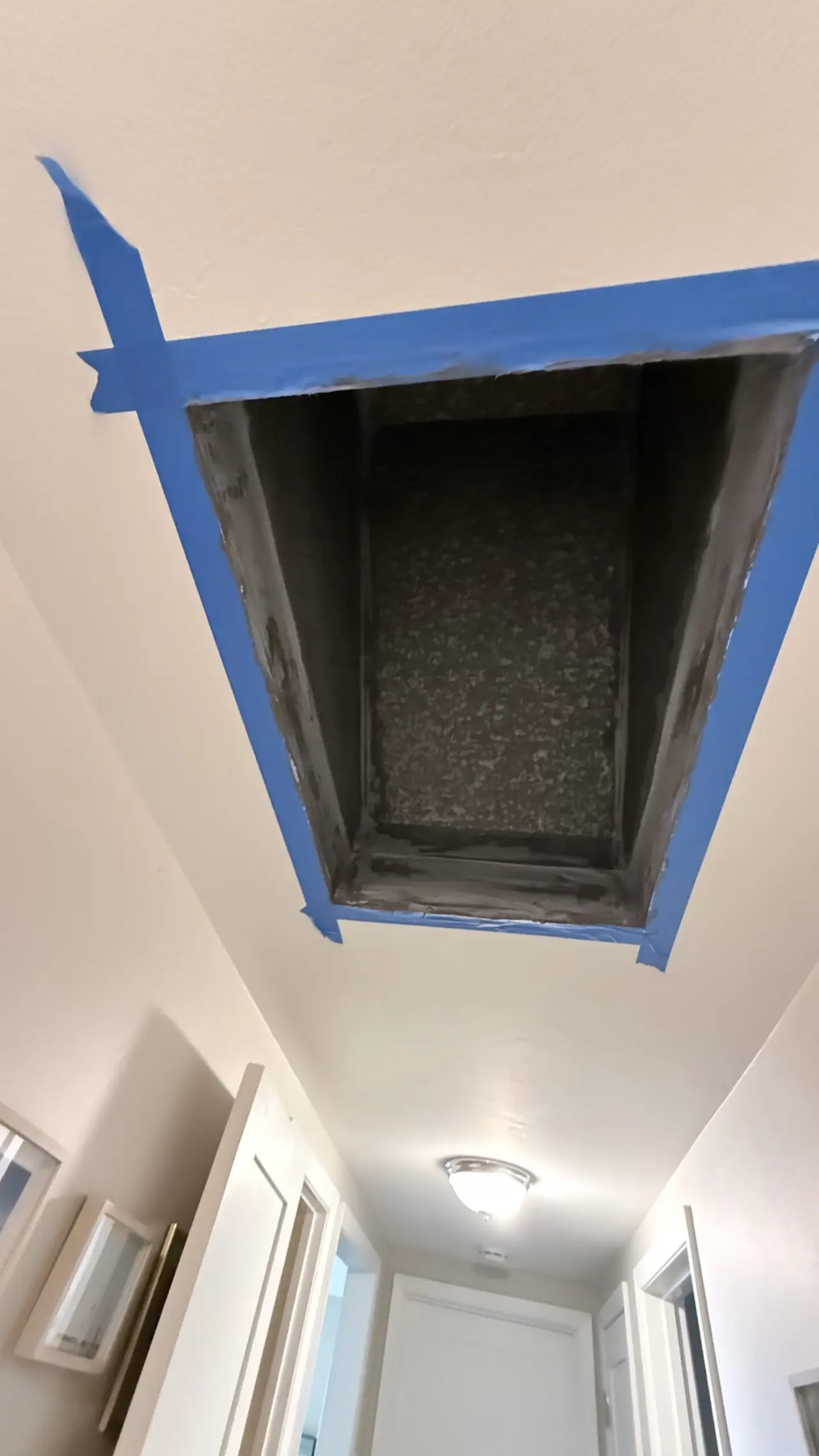

Ductwork was part of the job too. You can see the foil-insulated transitions above and below the air handler that connect it to the existing duct system. Inside the house we worked on a hallway ceiling return opening, taping it off first to keep the paint and ceiling clean while we were up there.
The outdoor unit and the details around it

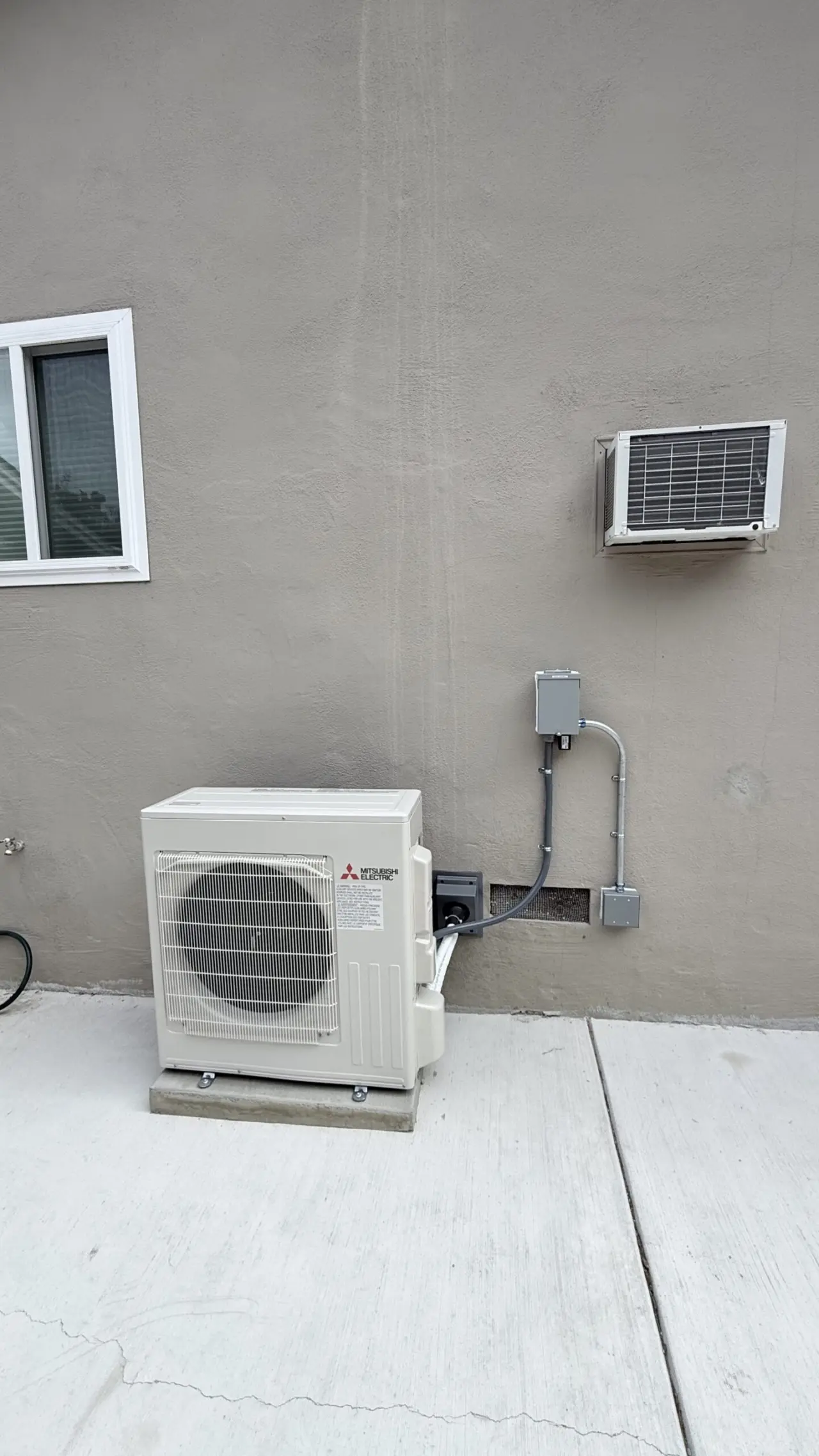

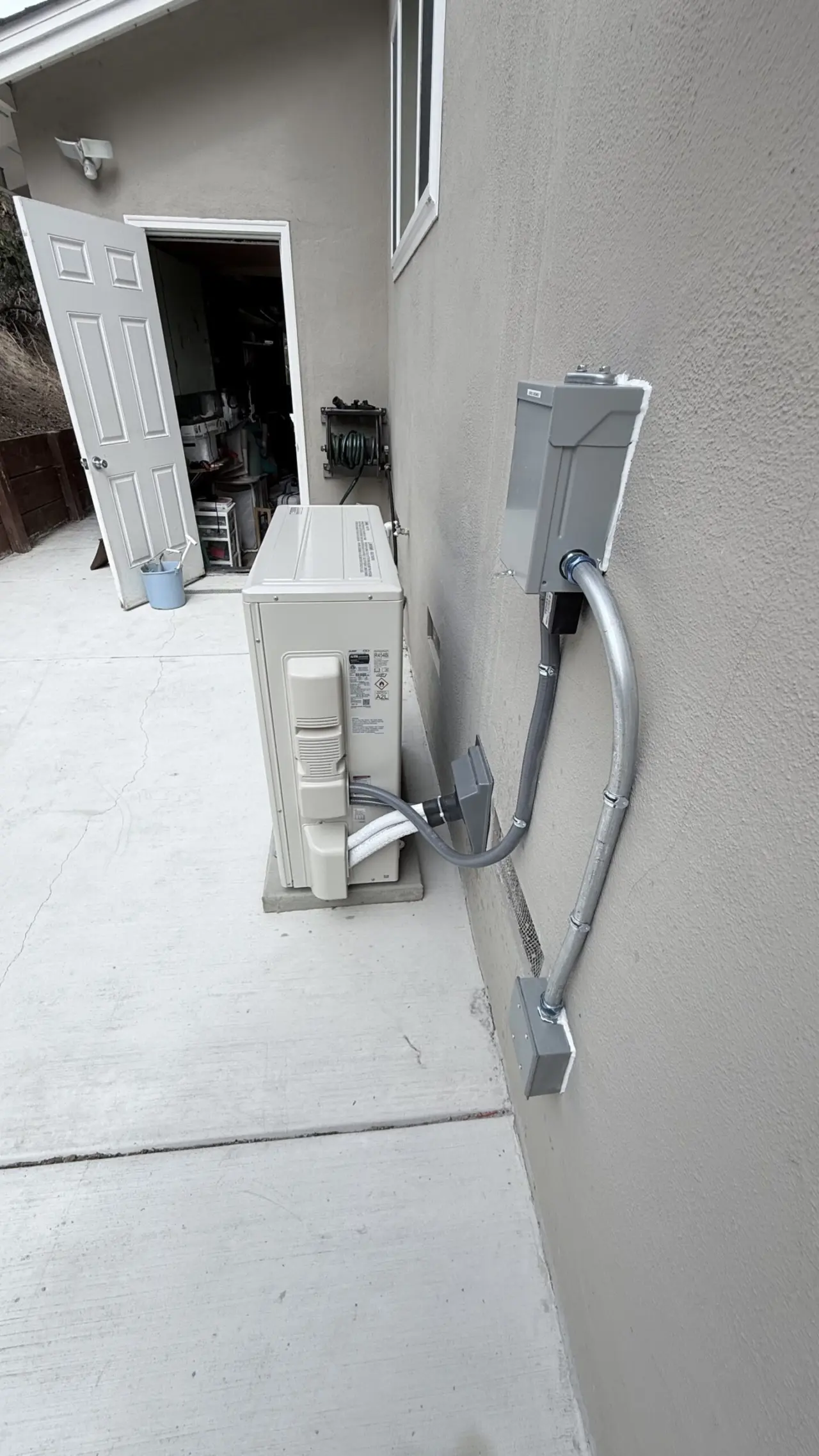

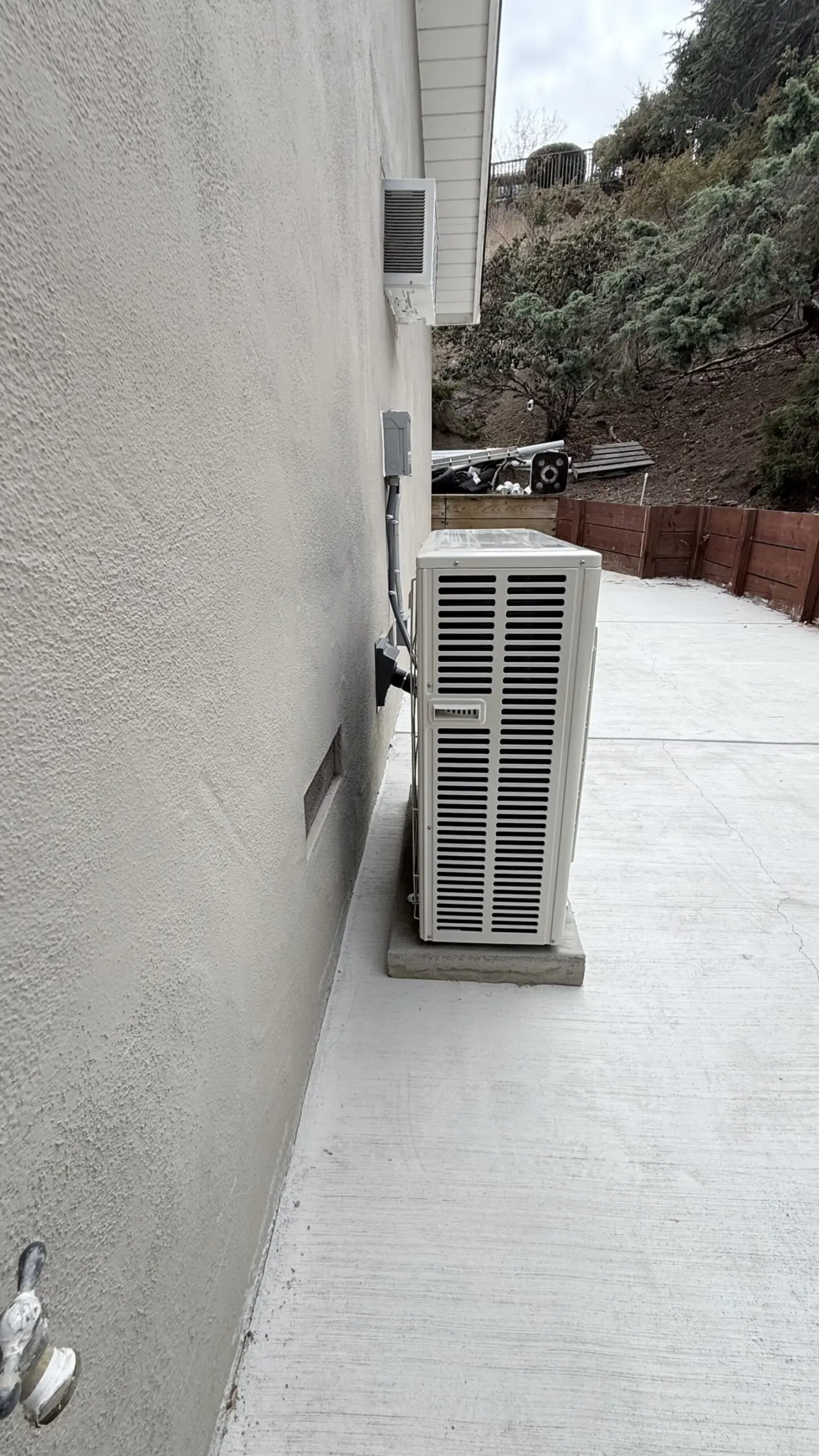

Outside, the Mitsubishi heat pump sits on a level concrete pad along the side of the house, with enough room around it for airflow and future service. The line set enters the wall through a tidy cover rather than a bare hole, which looks cleaner and protects the lines from weather.

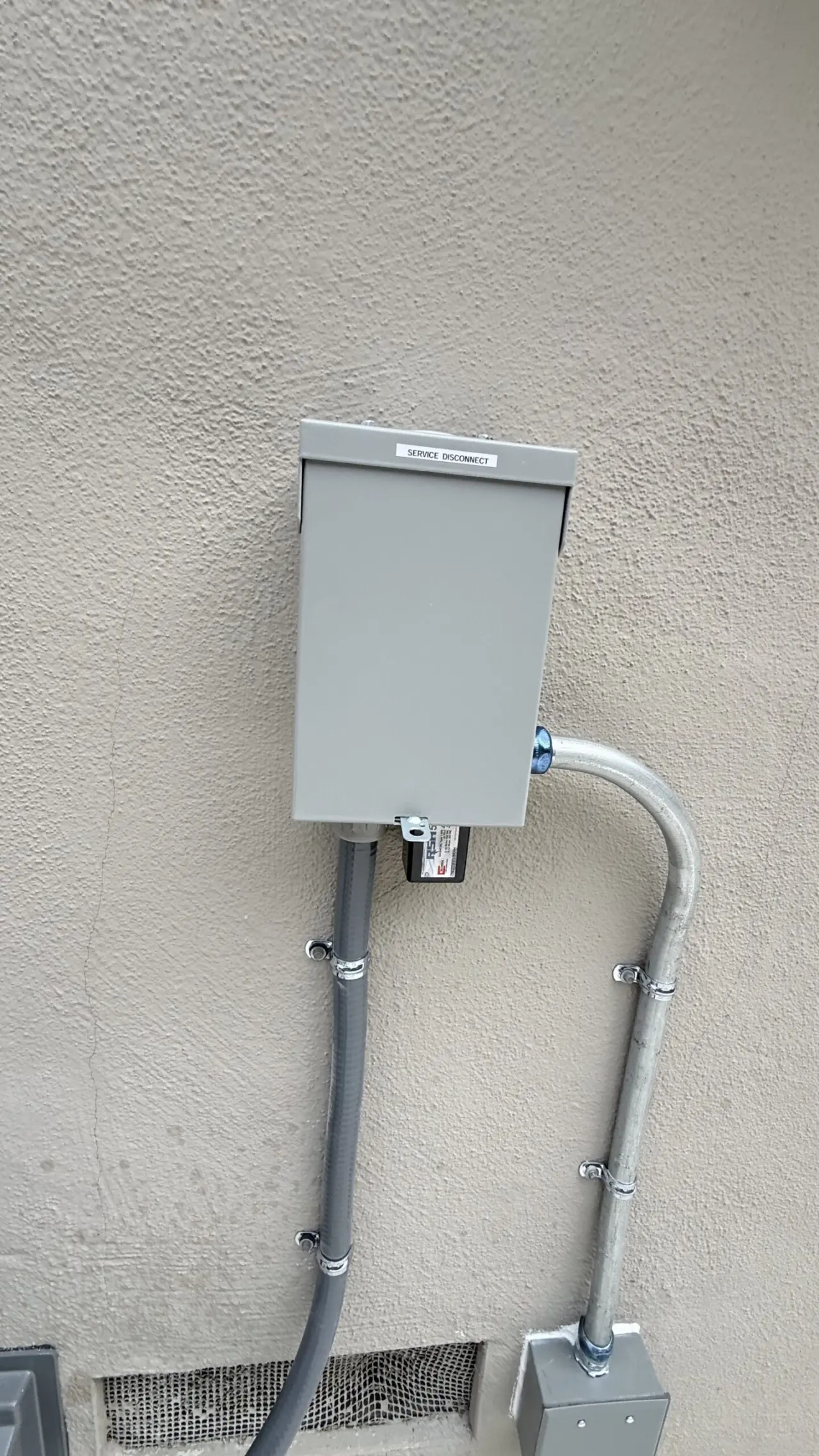

On the electrical side we mounted a labeled service disconnect next to the unit and added a surge protective device just below it. A heat pump has sensitive electronics, and a surge protector is a small, sensible step to help shield them from power spikes. The conduit is strapped straight to the wall so everything stays neat for years.
Finishing up
To round things out we installed a new thermostat to run the system, and the work was done under a city permit. Our crew spent about nine hours on site from start to finish, including setup, testing and cleanup.
- 3-ton Mitsubishi heat pump outdoor unit on a concrete pad
- Matching Mitsubishi air handler in place of the old furnace
- Ductwork connections and insulated transitions
- New thermostat
- Service disconnect with surge protective device
If you have an older furnace and are thinking about one system for both heating and cooling, take a look at our heat pump installation page. We are always happy to come out, measure your space and talk through what makes sense for your home.
