Mitsubishi 3-Ton Heat Pump Installation in Santa Clara
This heat pump installation in Santa Clara was one of those jobs where almost everything is new: a Mitsubishi 3-ton heat pump outside, a matching air handler in the attic, new ductwork with eight supply vents and one return, and a full electrical system to power it all. Our crew spent about nine hours on site and left the homeowners with a complete, quiet, all-electric system for both heating and cooling.
Ready for reliable comfort?
Book your San Mateo County HVAC service today - fast, honest, guaranteed.
The air handler in the attic

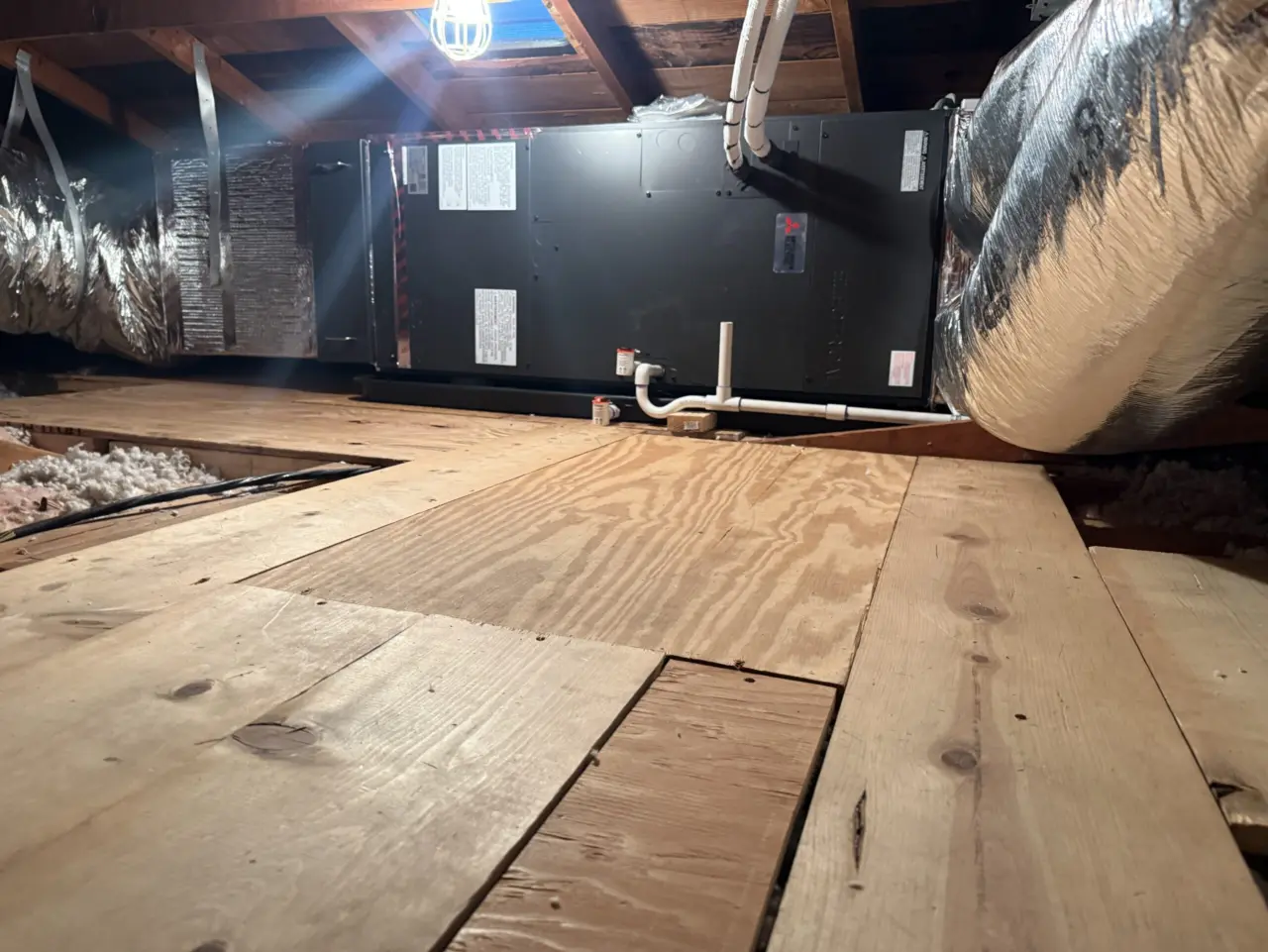

The indoor side of the system lives in the attic. We set the Mitsubishi air handler horizontally on a drain pan, so if water ever collects it stays in the pan instead of reaching the ceiling below. The condensate runs out through white PVC with a trap and a vent, and you can see two small overflow switches at the drain connections. The insulated refrigerant lines come down from above and go straight into the cabinet, neatly tied together.
We also took care of the space around the unit. Plywood decking sits in front of the air handler and a plywood path runs across the insulation to it, so whoever comes up for service later has somewhere solid to kneel and walk instead of stepping between joists.
New ductwork, eight vents and a return
A new heat pump only works as well as the ducts behind it, so this job included new ductwork: eight supply vents and one return. The insulated flex duct is hung from the rafters on straps rather than lying on the attic floor, which keeps the runs smooth and helps the air get where it is supposed to go. The duct connects to an insulated plenum at the air handler.
Electrical and the outdoor unit
The job description says «full electrical system,» and that is exactly what it was. The air handler got its own disconnect mounted on a board at the rafters, with the wiring run in flexible conduit. Outside, the heat pump has a wall-mounted disconnect next to it, and we added a surge protective device to help guard the electronics in the new equipment against power spikes.

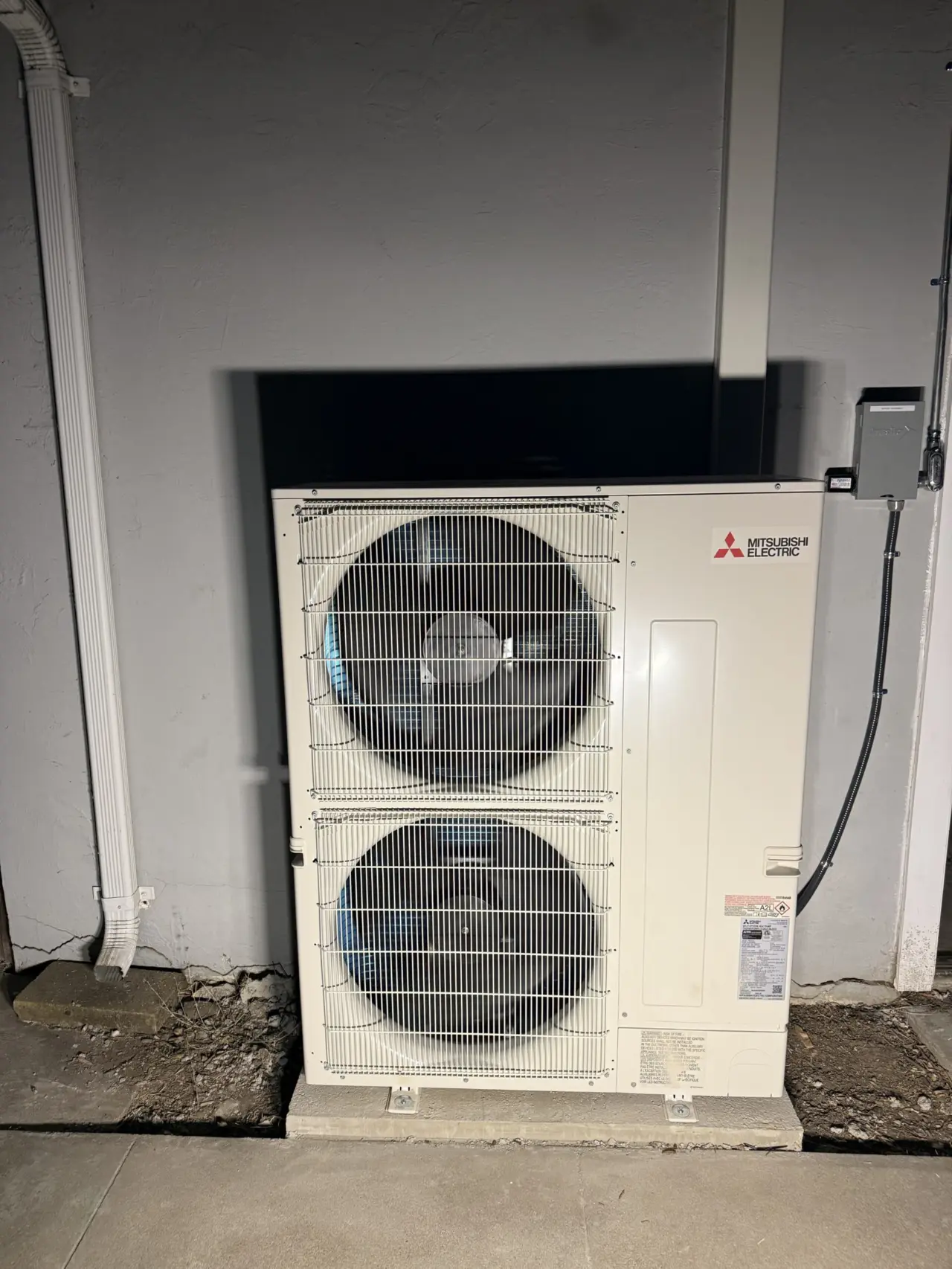

The Mitsubishi outdoor unit sits on a concrete pad along the side of the house, clear of the downspout and close to the wall. With two fans in a tall cabinet, it takes up little ground space, which matters on the narrow side yards so common around here.
The job also went through a city permit, and the homeowners now have a maintenance visit included, so we will be back to check on everything down the road.
If you are thinking about moving to a heat pump, here is more about how we approach heat pump installation for homes across the Peninsula and South Bay. We are always happy to come out, look at your attic and ducts, and talk through what would fit your home.
