This system provides independent temperature control for two separate zones, allowing users to customize the comfort level in each area according to their preferences.

At the heart of the M-Series system is the outdoor unit, which houses the compressor and condenser coil. This unit is responsible for extracting heat from the outside air during the cooling mode and reversing the process during heating mode. The outdoor unit is connected to the indoor units through refrigerant lines and electrical wiring.

The indoor units are strategically installed within each zone and are equipped with remote controls for easy operation. With these remotes, you can adjust the temperature, fan speed, and mode settings within their specific zone. This level of control enables personalized comfort and energy savings by only conditioning occupied areas.

On photos:

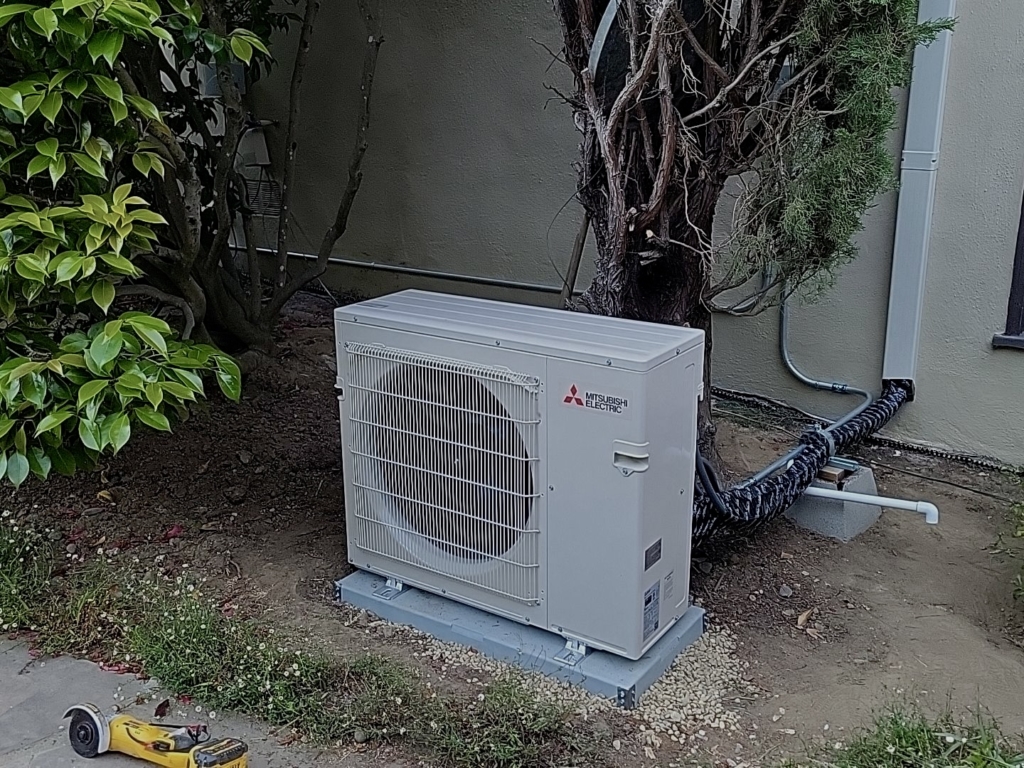

Mitsubishi heat pump MXZ-4C36NA3 - U1

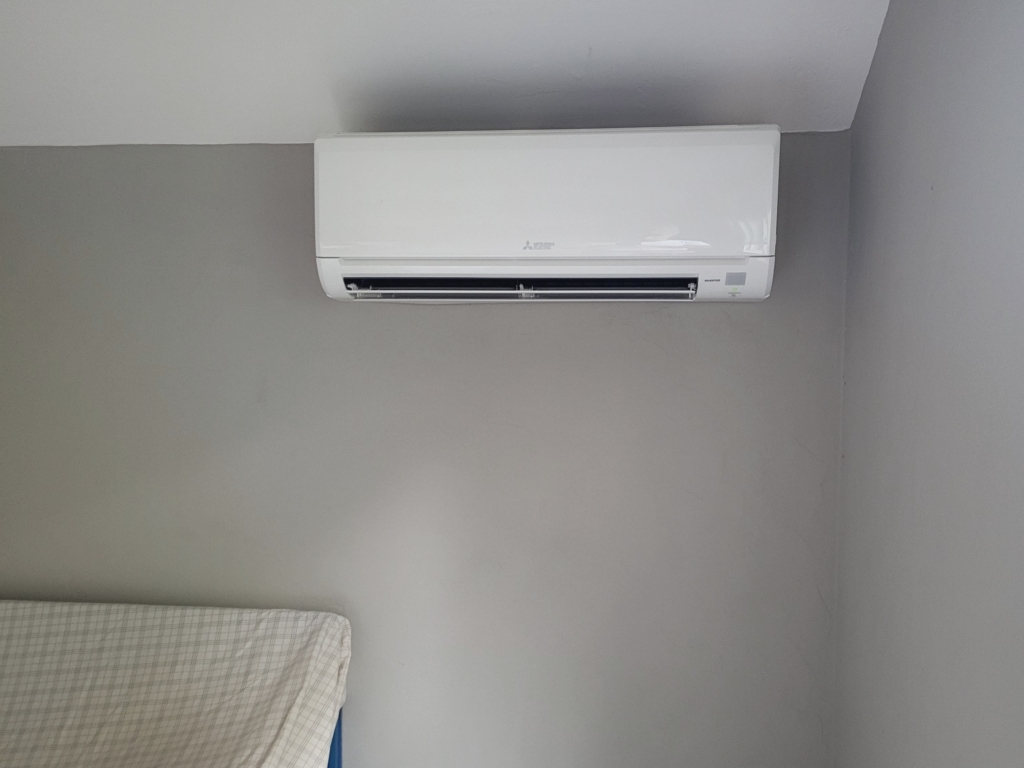

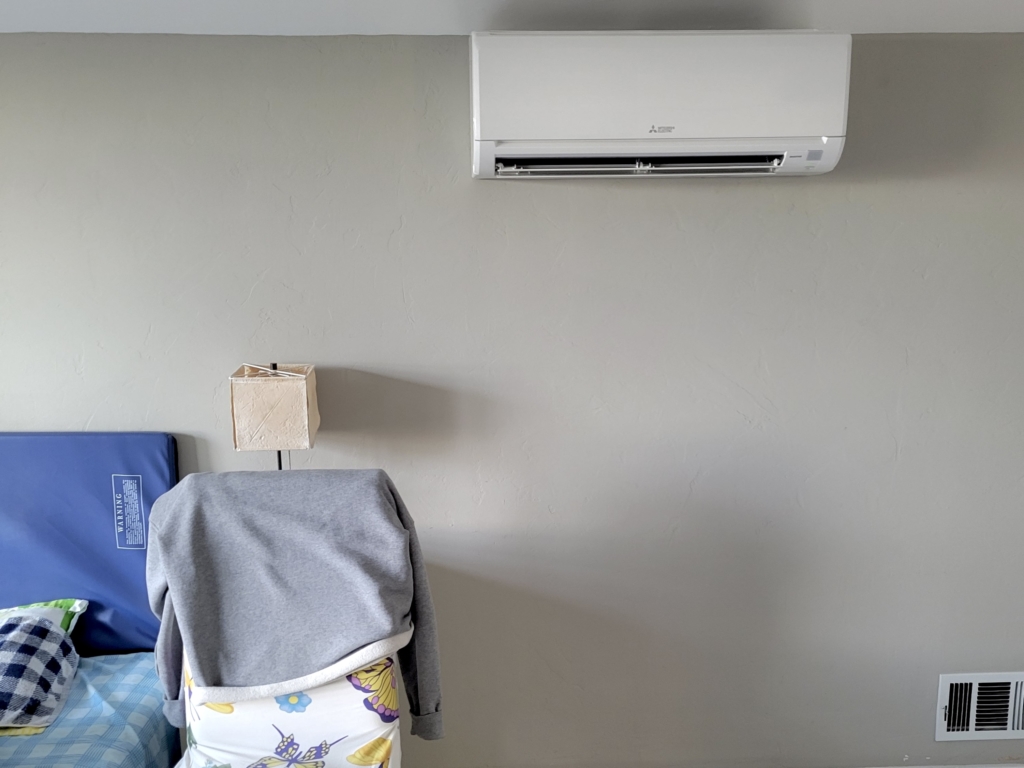

Mitsubishi MSZ-FSO9NA-U2 indoor unit
