Mitsubishi Heat Pump Installation in Santa Clara, CA
This heat pump installation in Santa Clara, CA replaced an old furnace with a new Mitsubishi ducted system that handles both heating and cooling from a single outdoor unit. The scope covered everything from removing the old equipment to rebuilding the electrical service that feeds it, so the homeowner ended up with a complete, code-compliant system rather than just a swapped-in unit.
Ready for reliable comfort?
Book your San Mateo County HVAC service today - fast, honest, guaranteed.
Removing the Old Furnace and Rebuilding the Electrical Service

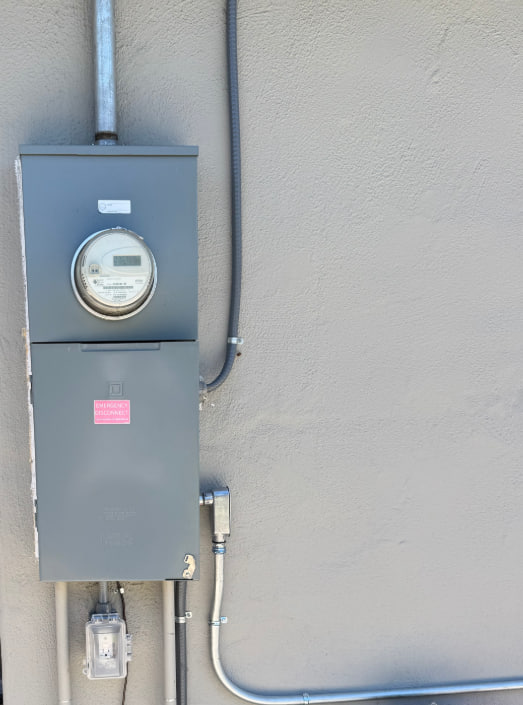

We started by removing and disposing of the old furnace, then installing a gas cap to properly close off the line that used to feed it. On the electrical side, this job needed a new dedicated line and breaker, a new HP whip, and a new electrical disconnect box for the outdoor unit. We also installed a new communication electrical line between the indoor and outdoor units and set a new service outlet nearby for future maintenance. None of this shows once the job is finished, but it is what keeps a heat pump system running safely for years.
Installing the New Mitsubishi Heat Pump System

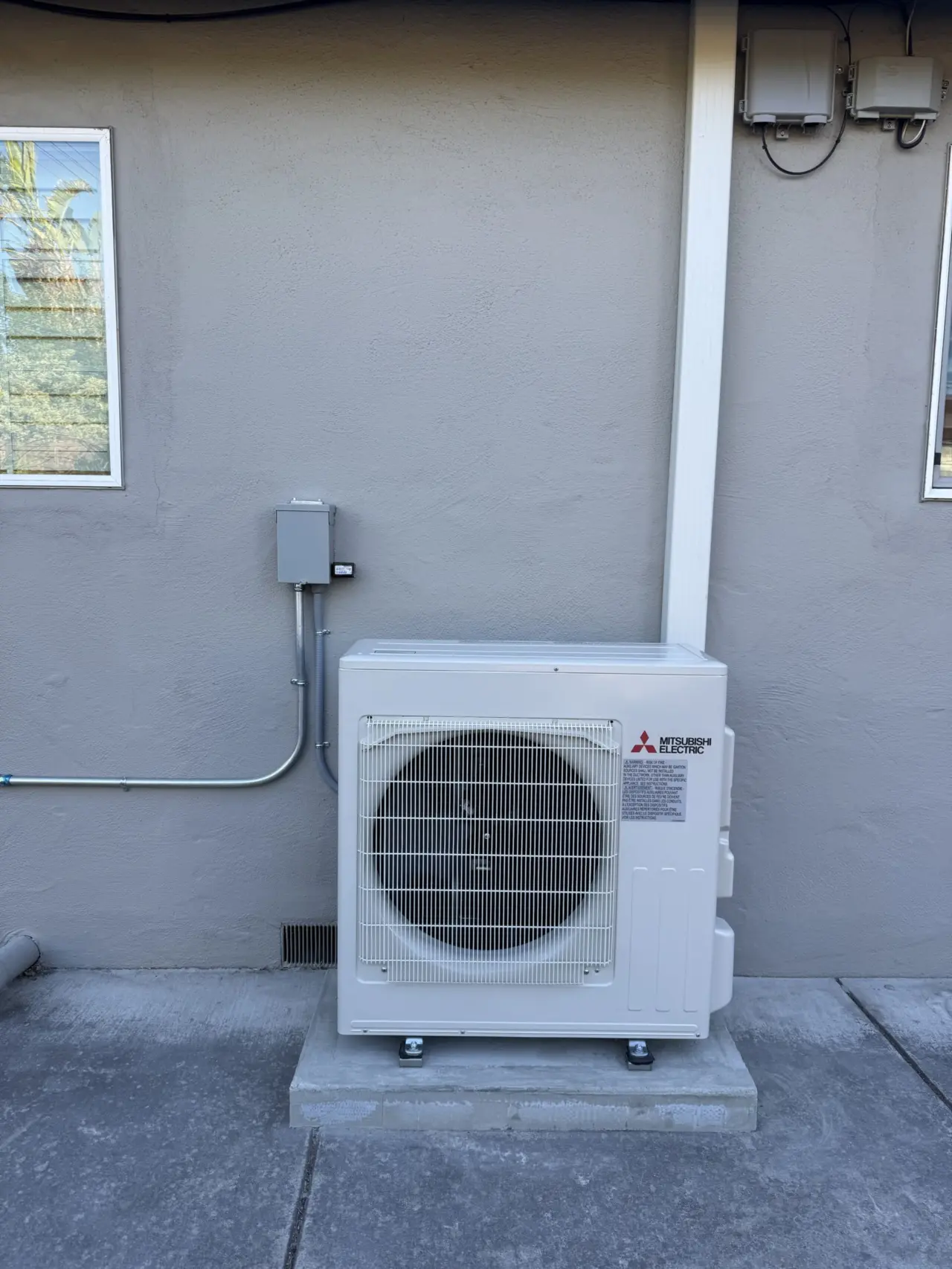

The new equipment is a 2.5-ton Mitsubishi system built around the SVZ-AP30NL air handler and SUZ-AA30NL heat pump. We poured a new concrete pad for the outdoor unit and set it on neoprene anti-vibration isolators to keep operation quiet. The air handler features fiberglass-free R4.2 insulation, a totally enclosed ECM motor, and selectable external static pressure settings, while the outdoor unit uses an inverter-driven compressor with Hot-Start Technology and Blue Fin coated coils to resist corrosion in our coastal air.

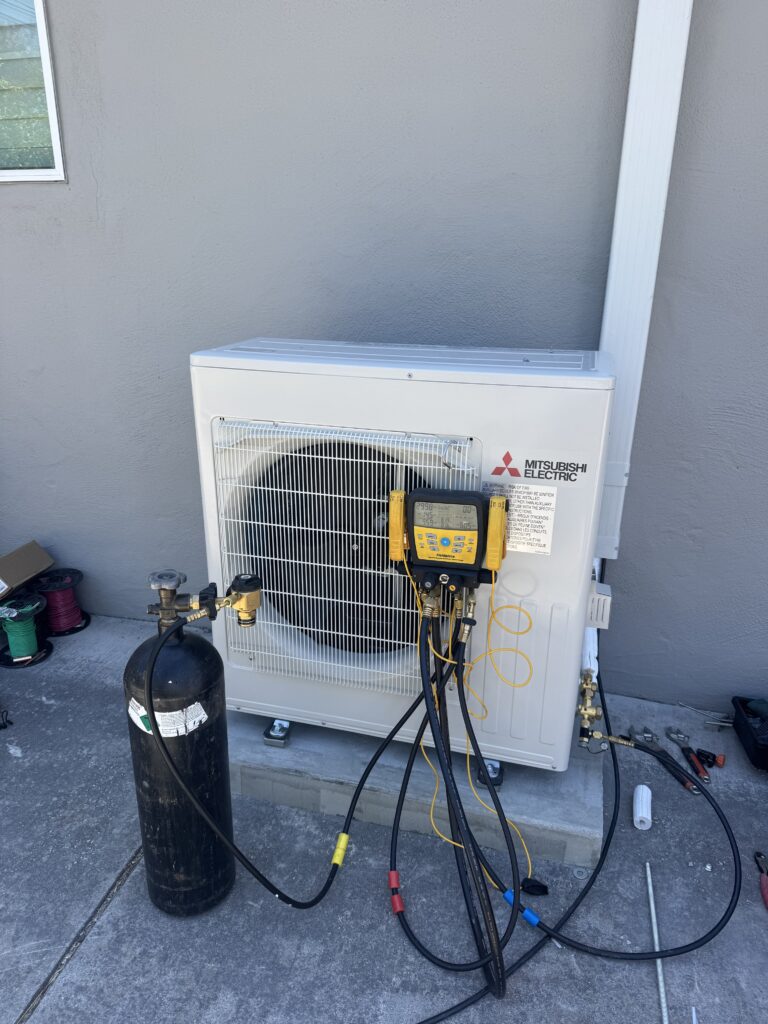

Beyond the equipment itself, the job included a new refrigerant line set with a new plastic line cover, redone and reconnected drain lines both indoors and from the outdoor unit, and a new condensation safety switch. We also installed a new intake grill, inspected the existing ductwork, and balanced airflow through the dampers already in place. Before charging the system, we ran a high-pressure leak test on the refrigerant lines and pulled a full vacuum to make sure everything was clean and dry. For controls, the homeowner got a Mitsubishi MHK2 thermostat along with the PAC-USWHS002-WF-2 wireless interface for app-based control of the heat pump installation.
Surge Protection and Smart Air Quality Add-Ons
To protect the new system’s electronics, we added a surge protective device rated Type 1, NEMA 4X and IP66, with dual diagnostic LEDs and an audible alarm for power spikes. The homeowner also opted into a smart air cleaning system built around an Amazon Smart Air Quality Monitor, a MERV 13 air purifier, and a smart thermostat working together. The monitor tracks particulate matter, VOCs, carbon monoxide, humidity, and temperature, and can trigger notifications or Alexa routines when air quality changes.
Warranty and Permit Timeline
All materials and labor for this job are covered under a 12-year equipment warranty and a 3-year labor warranty. As with any system of this size, we submitted the permit application to the city within four business days of the quote being approved, and work began within seven business days after the permit was issued. For a Santa Clara home that had been running an aging furnace and separate cooling equipment, ending up with one Mitsubishi system that heats and cools, plus cleaner air and better surge protection, was a solid upgrade.
